Completely Concealed Hinge. Adjustable in three directions that ensures a smooth movement of the door and provides excellent visual appearance.
Hinge
Product code: VAL505B
38.31 €
Included 22% VAT
DESCRIPTION
• Hinge for minimum door thickness of 35 mm
• Adjustable in three directions
• Right and left applicable
• The fixing screw are concealed with a frame
TECHNICAL DATA
• Load capacity: 2 hinges = 40 kg
• Height: 110 mm
• Width of the hinge: 24 mm
• Opening angle: 180°
FINISHING

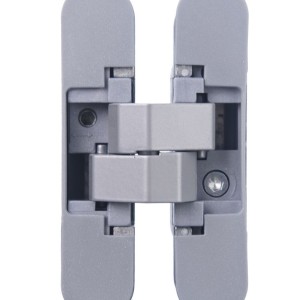

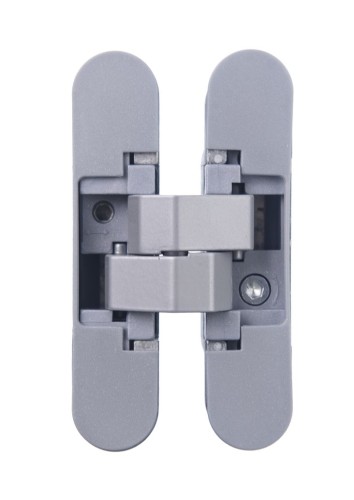

• VAL505F1 – Satin Chrome

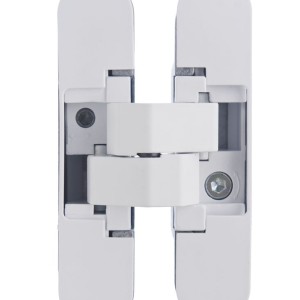

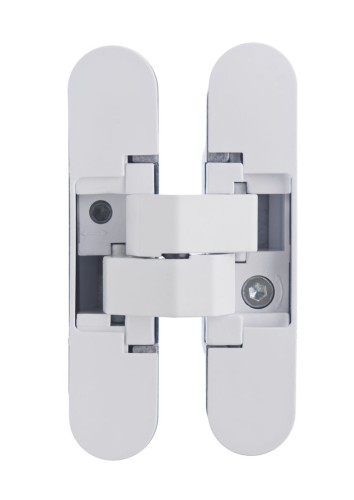

• VAL505W – White

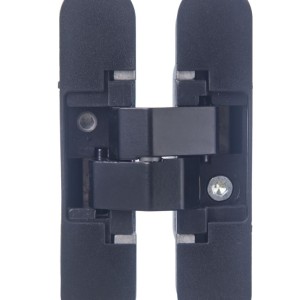

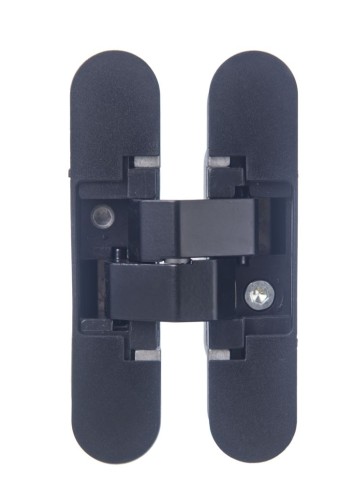

• VAL505B – Blac
ADJUSTMENTS
• Height: +2,5 mm - 2,5 mm
• Side: -1.5 mm + 1.5 mm
• Depth: -1 mm + 1 mm
MILLING
Suggested cutter’s diameter 14 or 16 mm
